GRT8-2T Double Delay On Timer Relay，16A AC/DC12V to 240V Adjustable Two Groups of Output terminals with Different delay on Times Relay of Wide Time Delay Range for 0.1 Seconds to 10 Days
US$9.59
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by ofenbau-stangl.tirol
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$9.59
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by ofenbau-stangl.tirol
Free 30-day returns Details
Product details
| Management number | 233918446 | Release Date | 2026/06/27 | List Price | US$9.59 | Model Number | 233918446 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- FUNCTION MODE: GRT8-2T delay on time relay control the closing of the circuit through the time delay function of the relay, 12v to 240v delay on time relay supports delayed opening of two groups of output terminals, and the two groups support different delay time settings to prevent the main circuit current peak from being too large (in some cases, it can replace two time relays to save costs).
- PARAMETER RANGE: number of outputs：2SPDT（2NO 2NC） rated current: 16A rated voltage: AC DC 12V to 240V (50-60Hz) (power supply allowable range: -15%; +16%) timer delay on range: 0.1s-1s/1s-10s/6s-60s/1min-10min/6min-60min/1h-10h/0.1d-1d/1d-10d

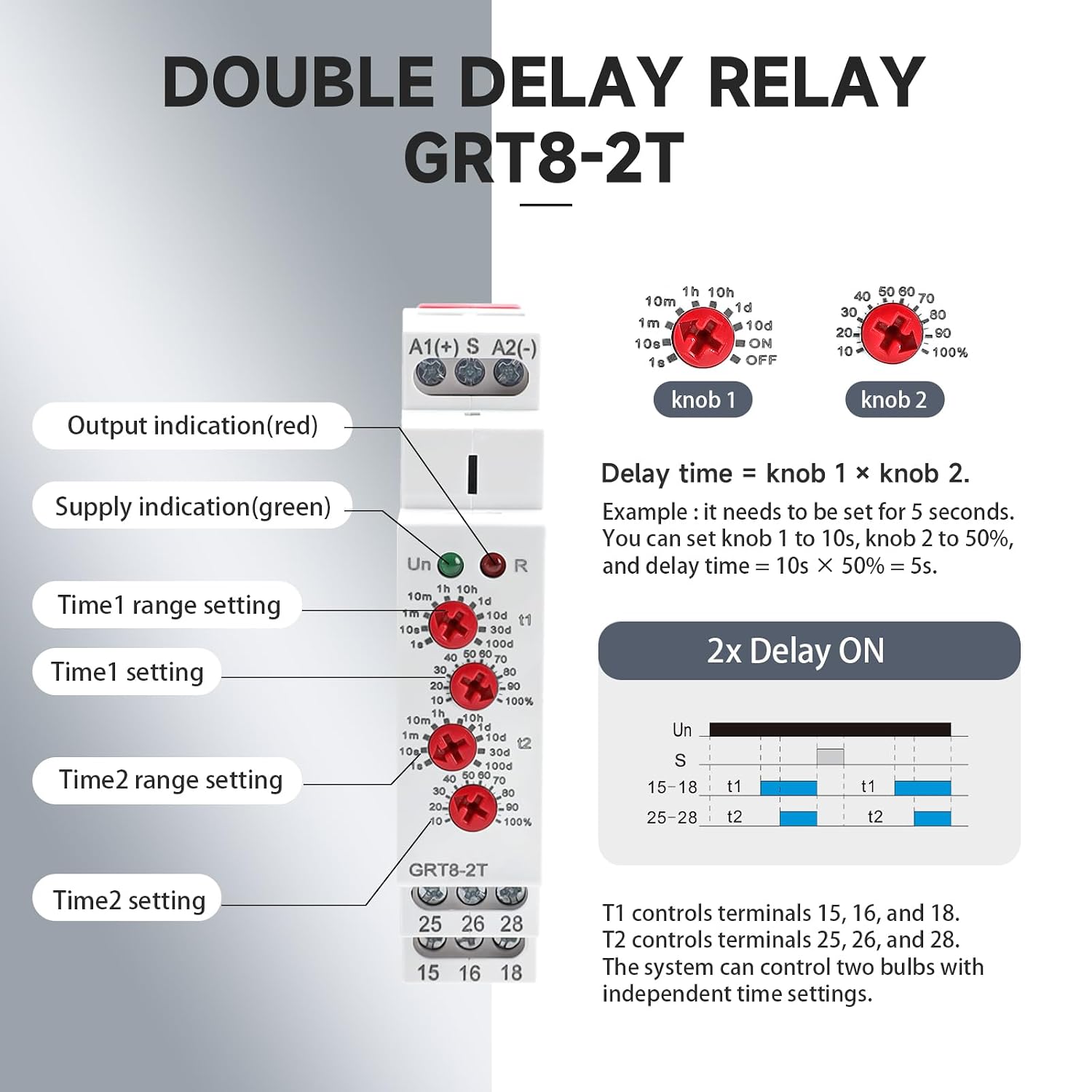

- USE & STATUS: electrical timers delay on relay terminals 15-18 are controlled by the t1 group knobs, and terminals 25-28 are controlled by the t2 knobs, t1 group and the t2 group do not affect each other, they work independently; the first knob of each group of operating knobs of the AC DC delay on relay is used to select the delay time gear, and the second knob is used for the time percentage multiple. The green delay indicator on the relay indicates the relay power supply, and the red indicator indicates the delay and contact status.
- MATERIAL & SIZE: din rail timer relay uses an ABS plastic sealed housing and complies with CE, CB, and RoHS, timer relay module measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.4 ounces, and is mounted on a 35 mm Din rail.
- WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
| ASIN | B0F2FRKC9H |
|---|---|
| Model | GRT8-2T AC/DC12V-240V |
| Brand Name | IGEYAPA |
| Part Number | GRT8-2T AC/DC12V-240V |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | IGEYAPA |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 16 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | CCC, CE, RoHS |
| Included Components | 1PCS GRT8-2T AC/DC 12V-240V+1*Instruction manual |
| Upper Temperature Rating | 131 Degrees Fahrenheit |
| Maximum Switching Current | 16 Amps |
| Maximum Switching Voltage | 240 Volts |
| Minimum Switching Voltage | 12 Volts |
